MicroWave25 Line Control System

The MW25 guide system is the most comprehensive set of MicroWave guides yet. Specifically designed to cast heavier braided, monofilament, and fluorocarbon fishing lines. Can be used with standard light rod applications but ideal for use on inshore, nearshore, or offshore rods as well as on longer rods or with larger reel sizes.

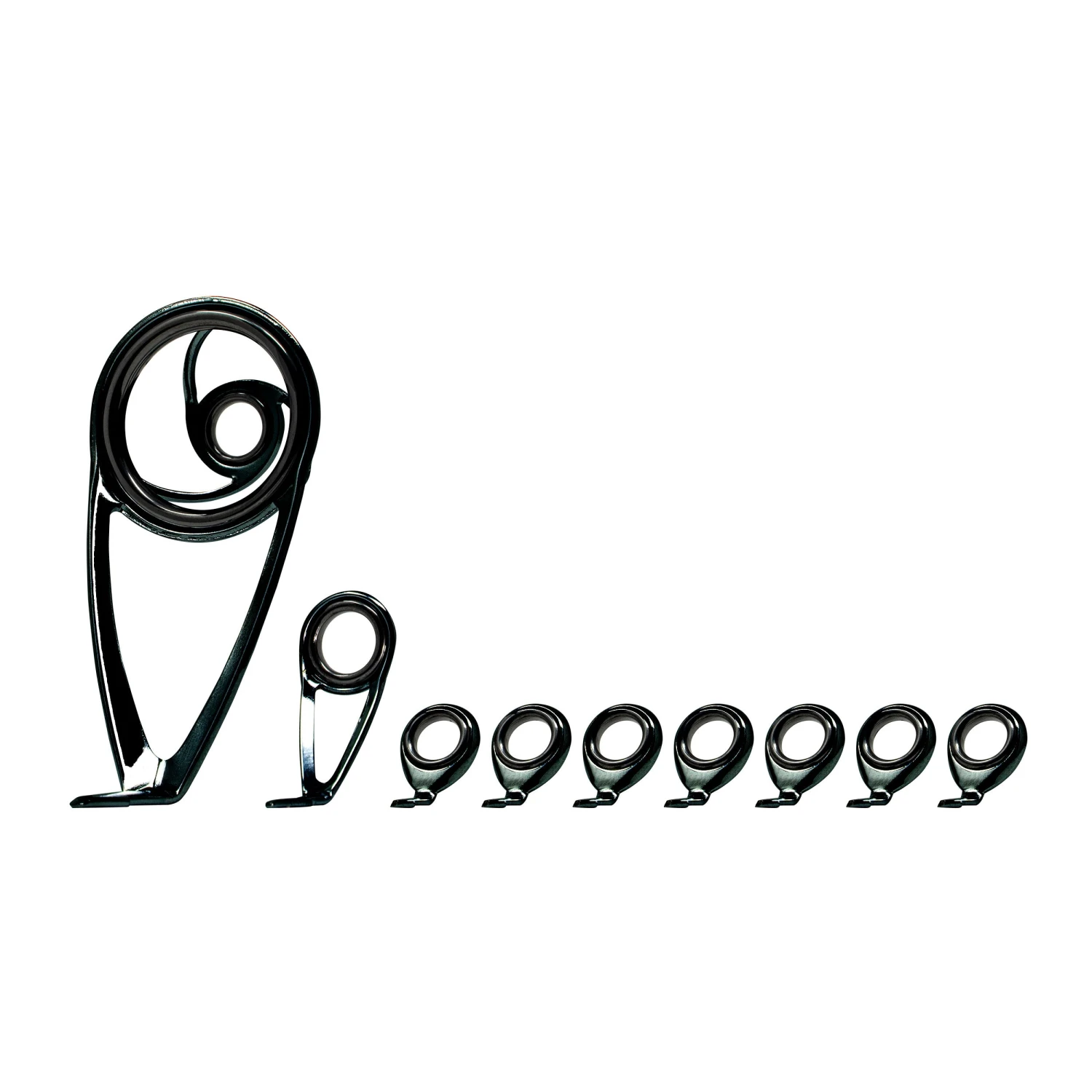

Complete set includes 9 guides in the following layout: 25/8 – 8T – 6 – 6 – 6 – 6 – 6 – 6 – 6.

Features & Benefits

• Patented Award Winning Line Control Technology
• Increased strength and material gauge
• Vector-angle crease for increased rigidity
• Snagless frame design
• High ring location

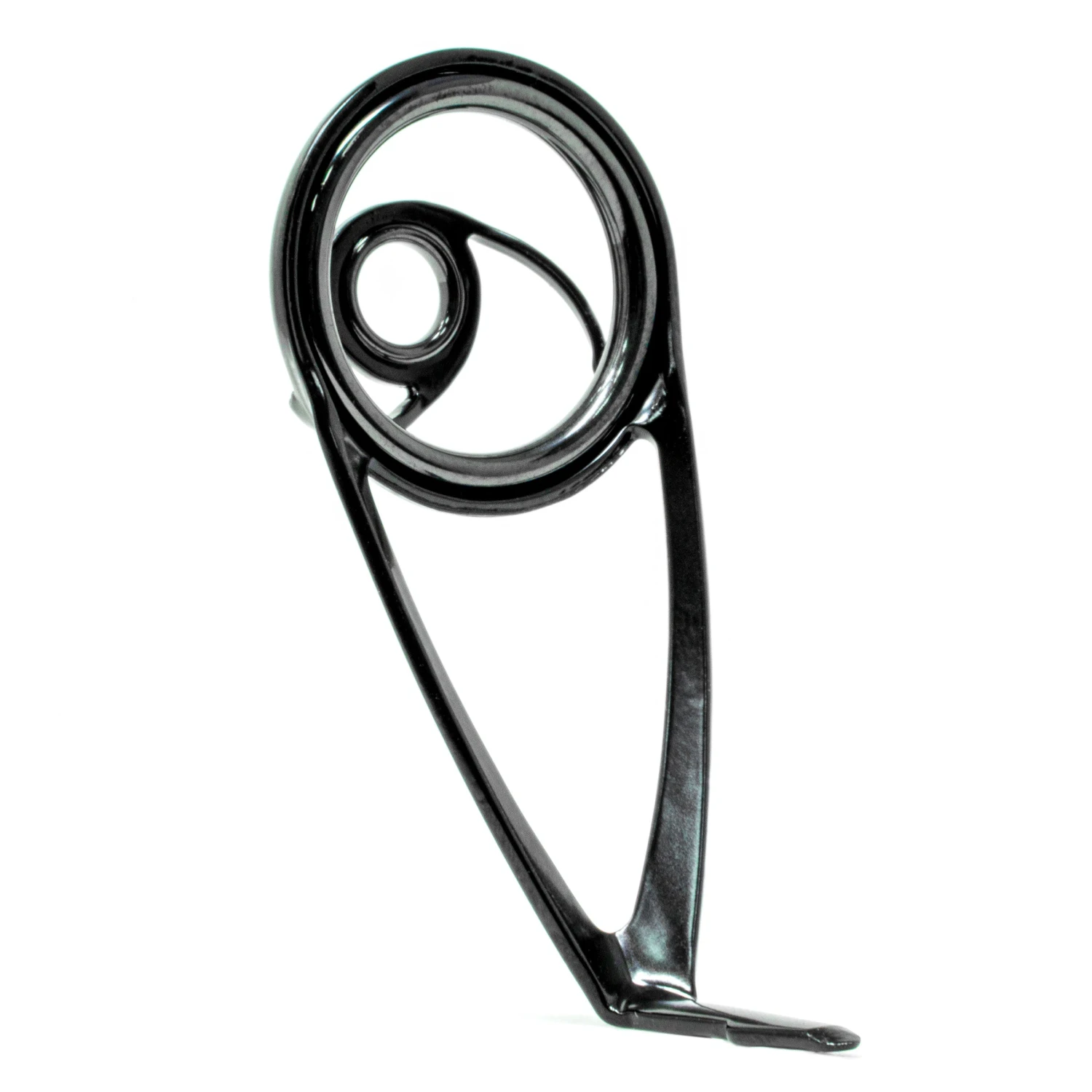

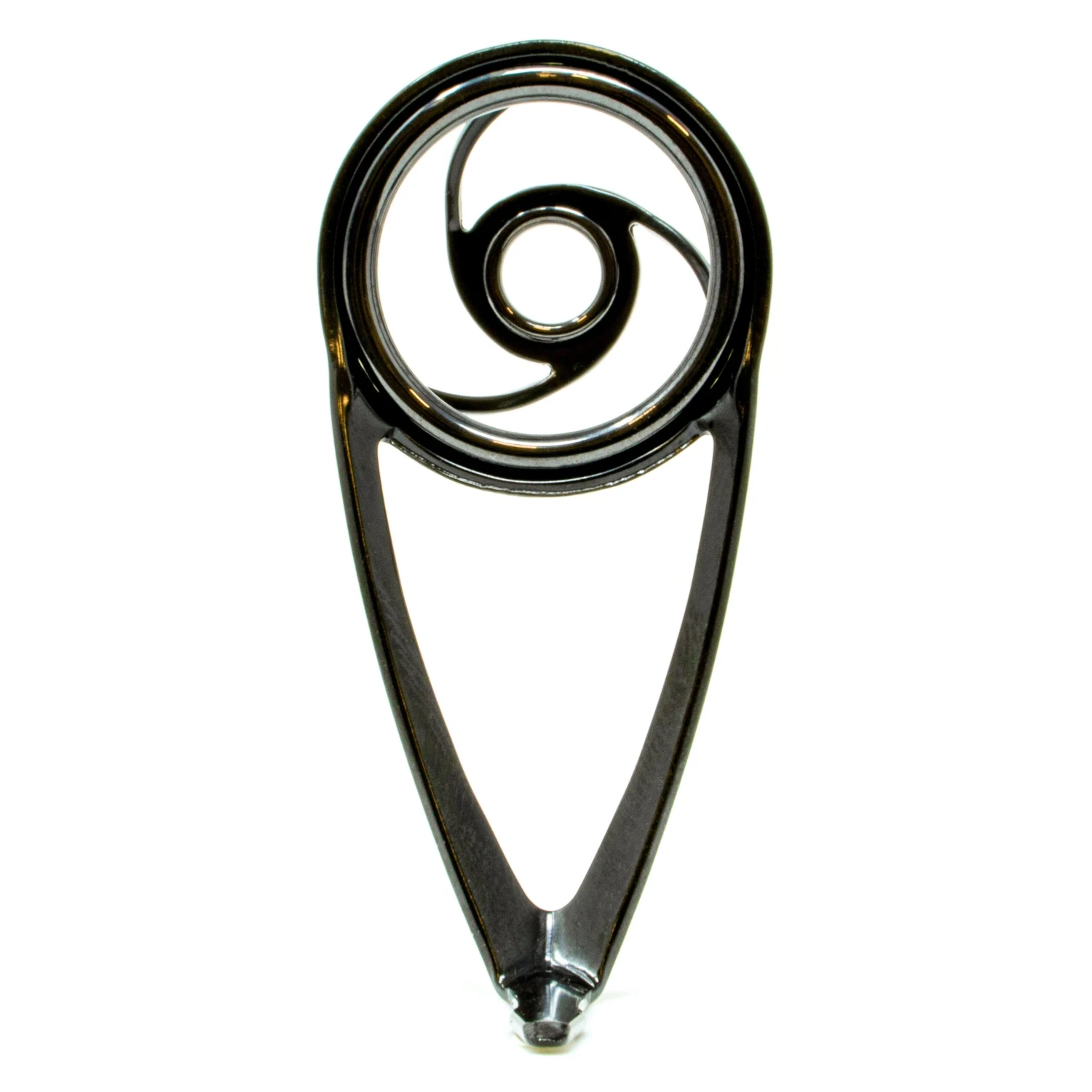

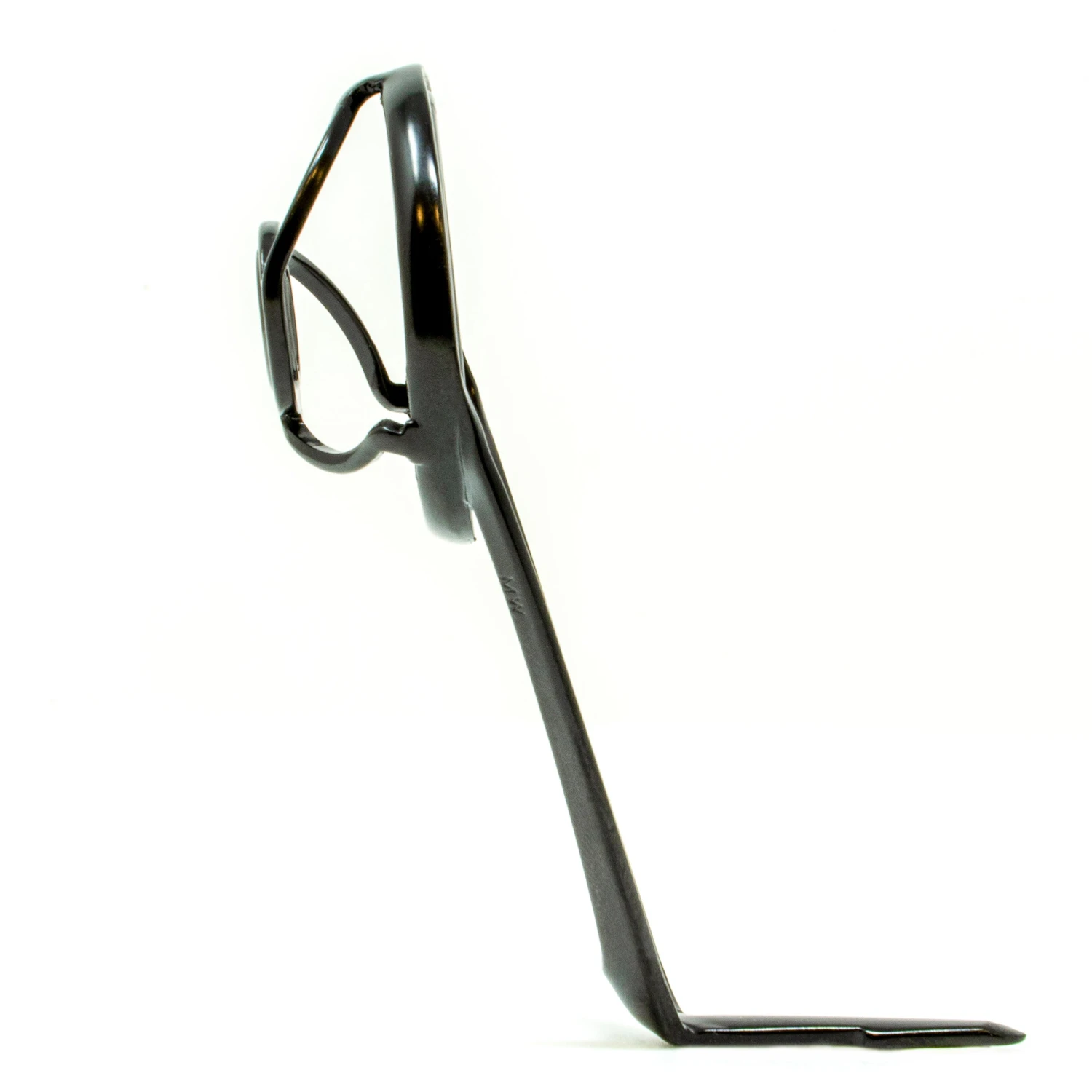

• 25mm primary ring and 8mm secondary ring stripper guide

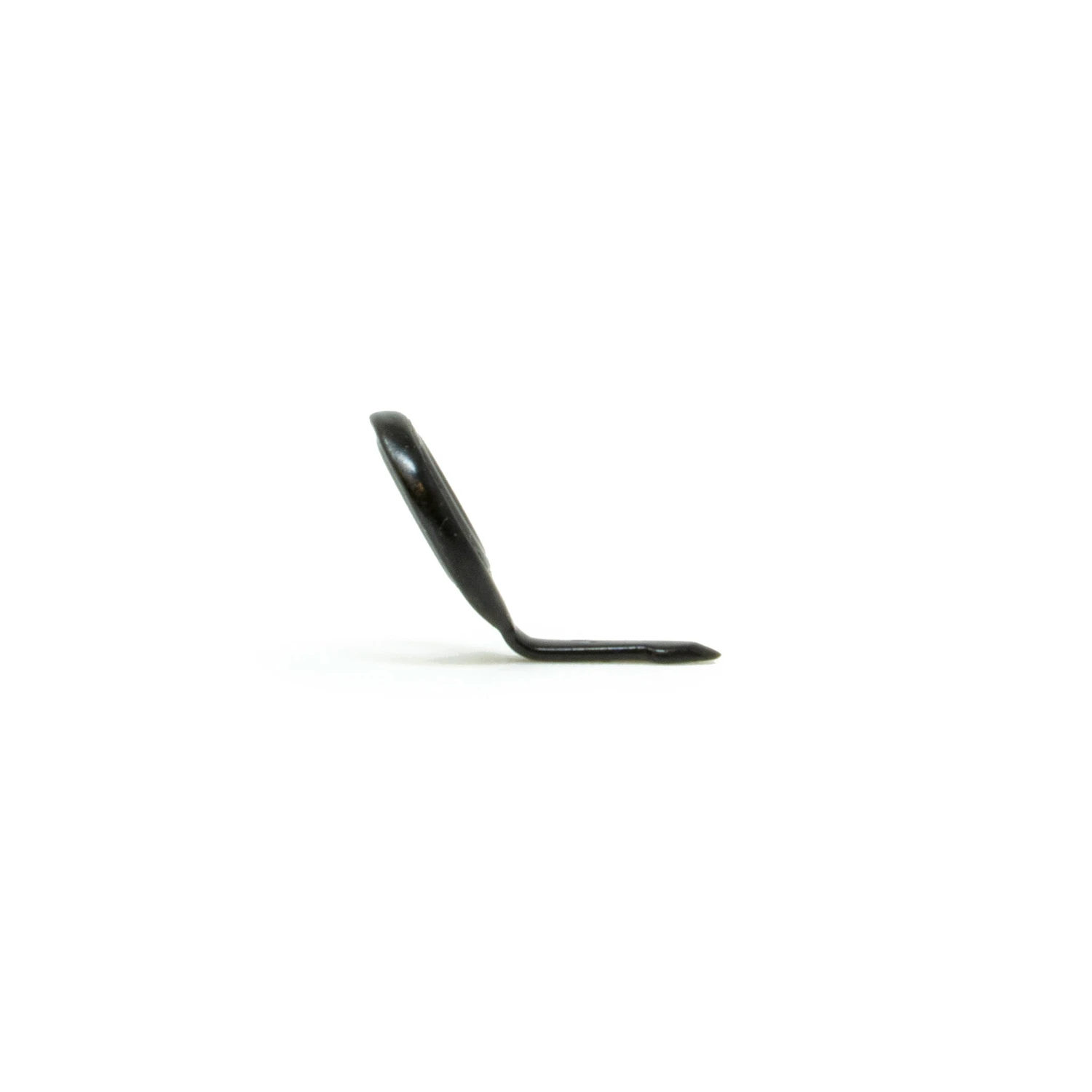

• Utilizes 6mm running guides for passing large leader knots
• Strong 316SS frames available w/Nanolite and Duralite rings

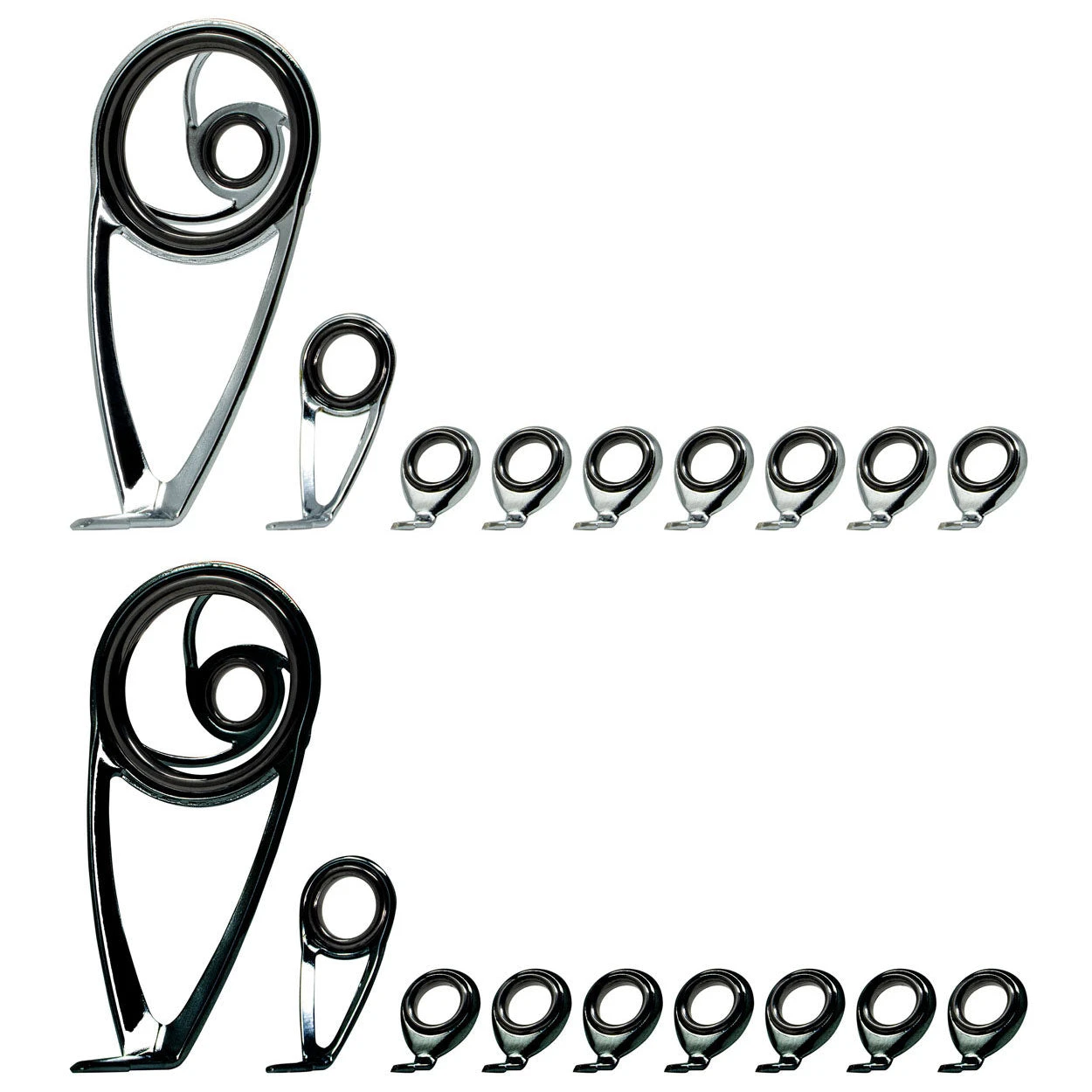

• Available in Chrome, TiON Titanium or Black Diamond finishes

Specifications

MW25 Line Control System Specifications Chart

ITEM	TYPE	RING MATERIAL	HEIGHT A	HEIGHT B	HEIGHT C	WEIGHT	RING I.D.	FOOT LENGTH
NBMW-25/8	Stripper Guide	Nanolite	36.90 mm	42.62 mm	53.50 mm	6.90 gm	19.45 mm	17.60 mm
NCMW-25/8	Stripper Guide	Nanolite	36.90 mm	42.62 mm	53.50 mm	7.00 gm	19.45 mm	17.60 mm
NOIMW-25/8	Stripper Guide	Nanolite	36.90 mm	42.62 mm	53.50 mm	6.80 gm	19.45 mm	17.60 mm
DBMW-25/8	Stripper Guide	Duralite	37.30 mm	42.94 mm	53.50 mm	7.30 gm	18.65 mm	17.60 mm
DCMW-25/8	Stripper Guide	Duralite	37.30 mm	42.94 mm	53.50 mm	7.40 gm	18.65 mm	17.60 mm

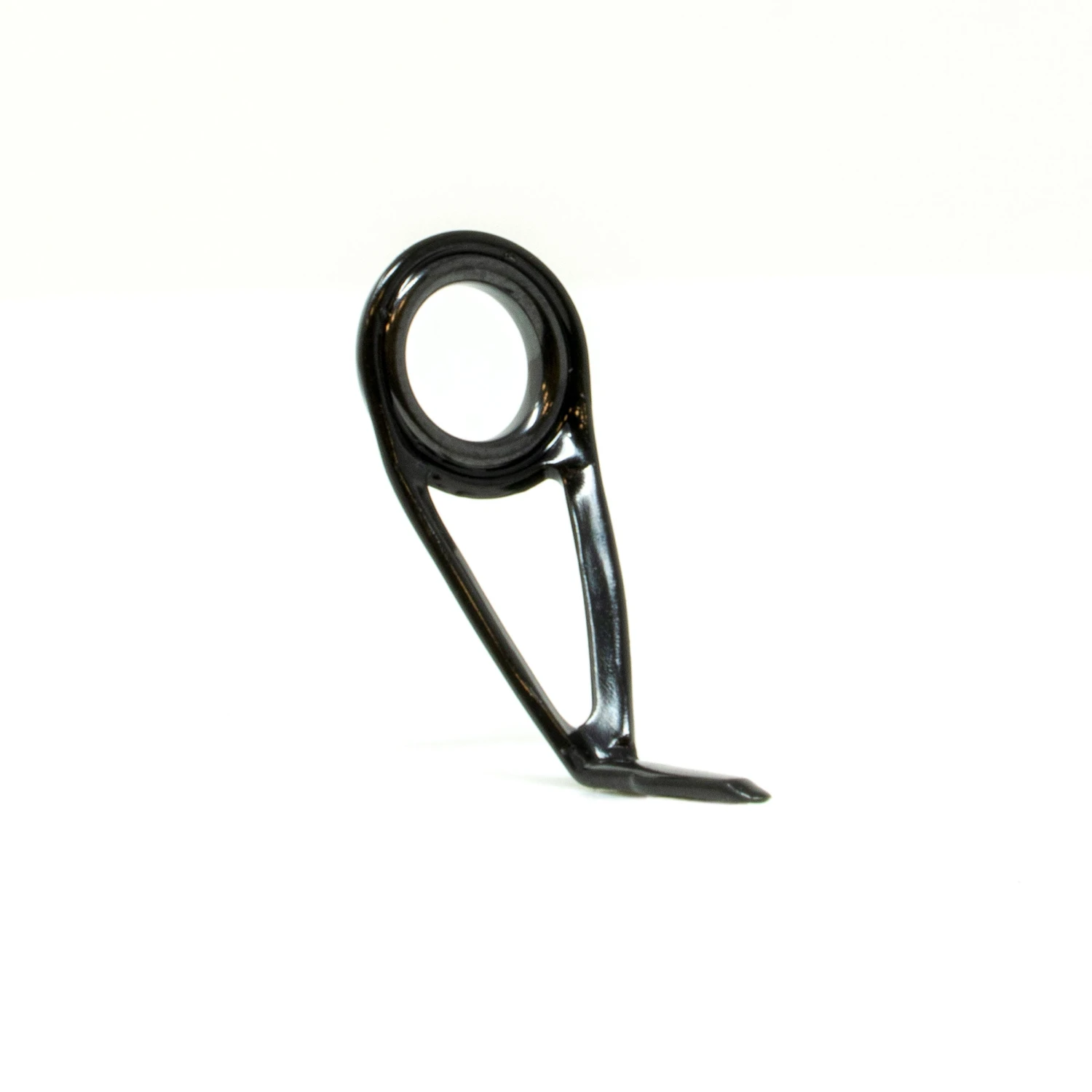

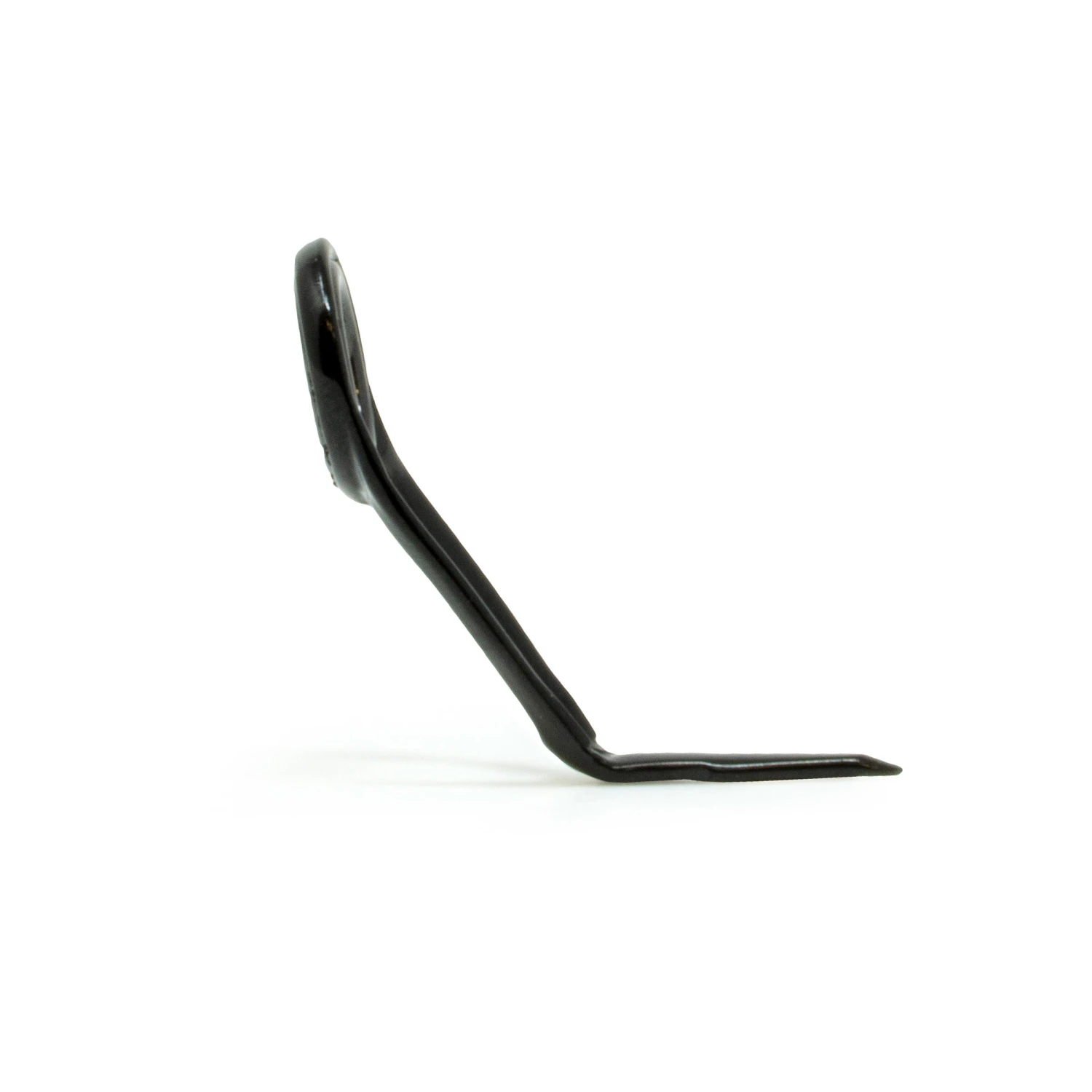

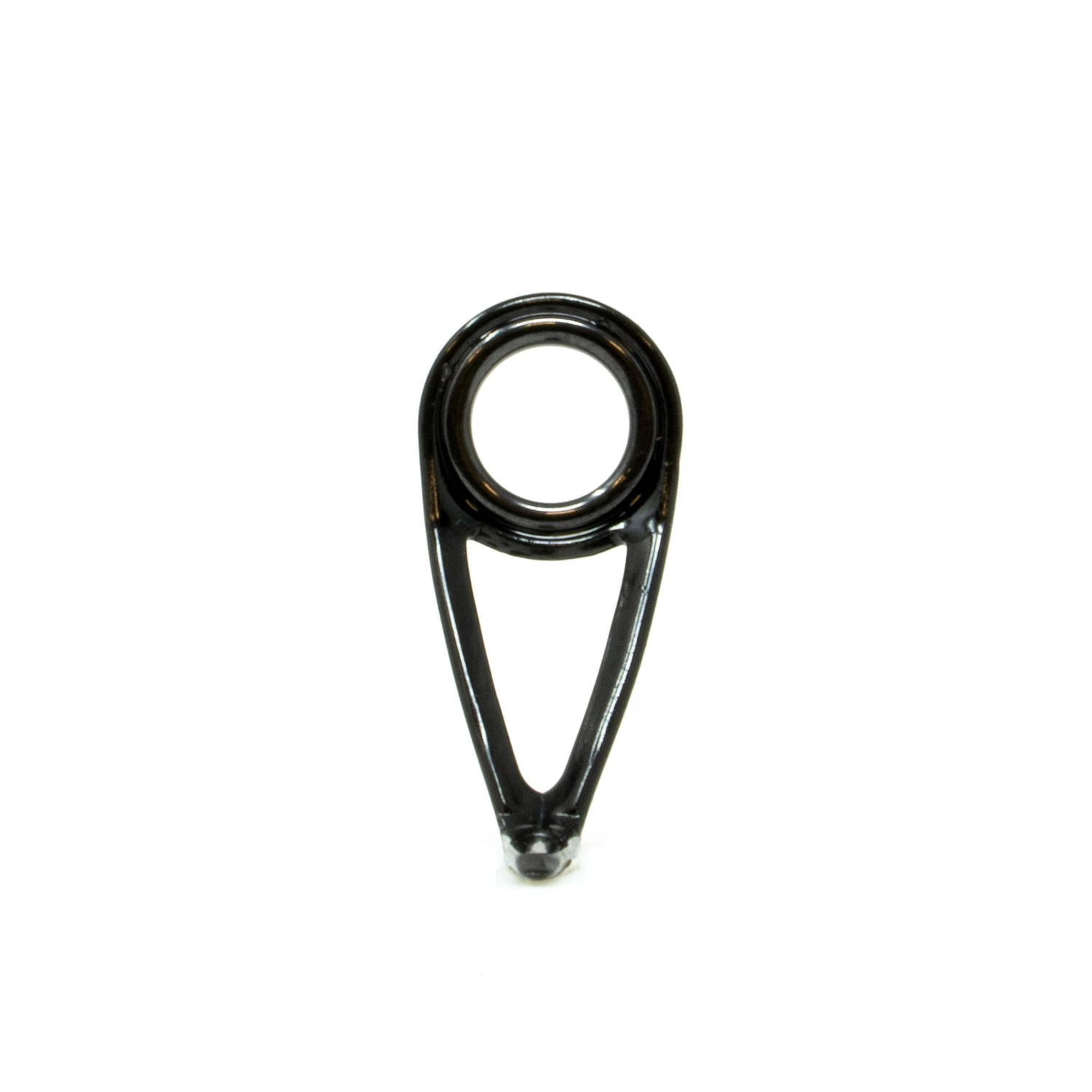

NBMW-8T	Transition Guide	Nanolite	11.60 mm	17.40 mm	19.40 mm	0.70 gm	5.80 mm	11.00 mm
NCMW-8T	Transition Guide	Nanolite	11.60 mm	17.40 mm	19.40 mm	0.80 gm	5.80 mm	11.00 mm
NOIMW-8T	Transition Guide	Nanolite	11.60 mm	17.40 mm	19.40 mm	0.40 gm	5.80 mm	11.00 mm
DBMW-8T	Transition Guide	Duralite	12.58 mm	18.18 mm	19.40 mm	0.80 gm	5.60 mm	11.00 mm
DCMW-8T	Transition Guide	Duralite	12.58 mm	18.18 mm	19.40 mm	0.80 gm	5.60 mm	11.00 mm

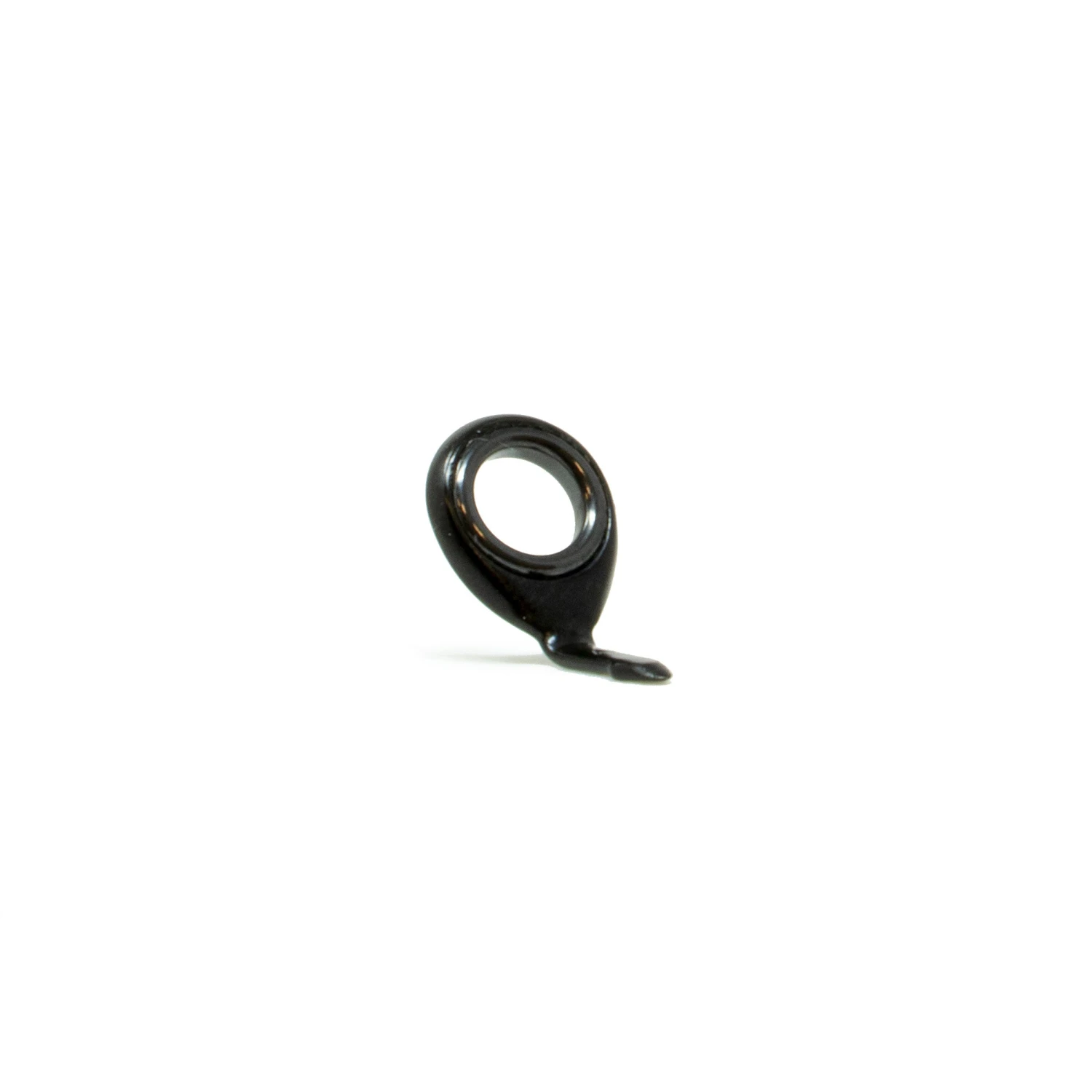

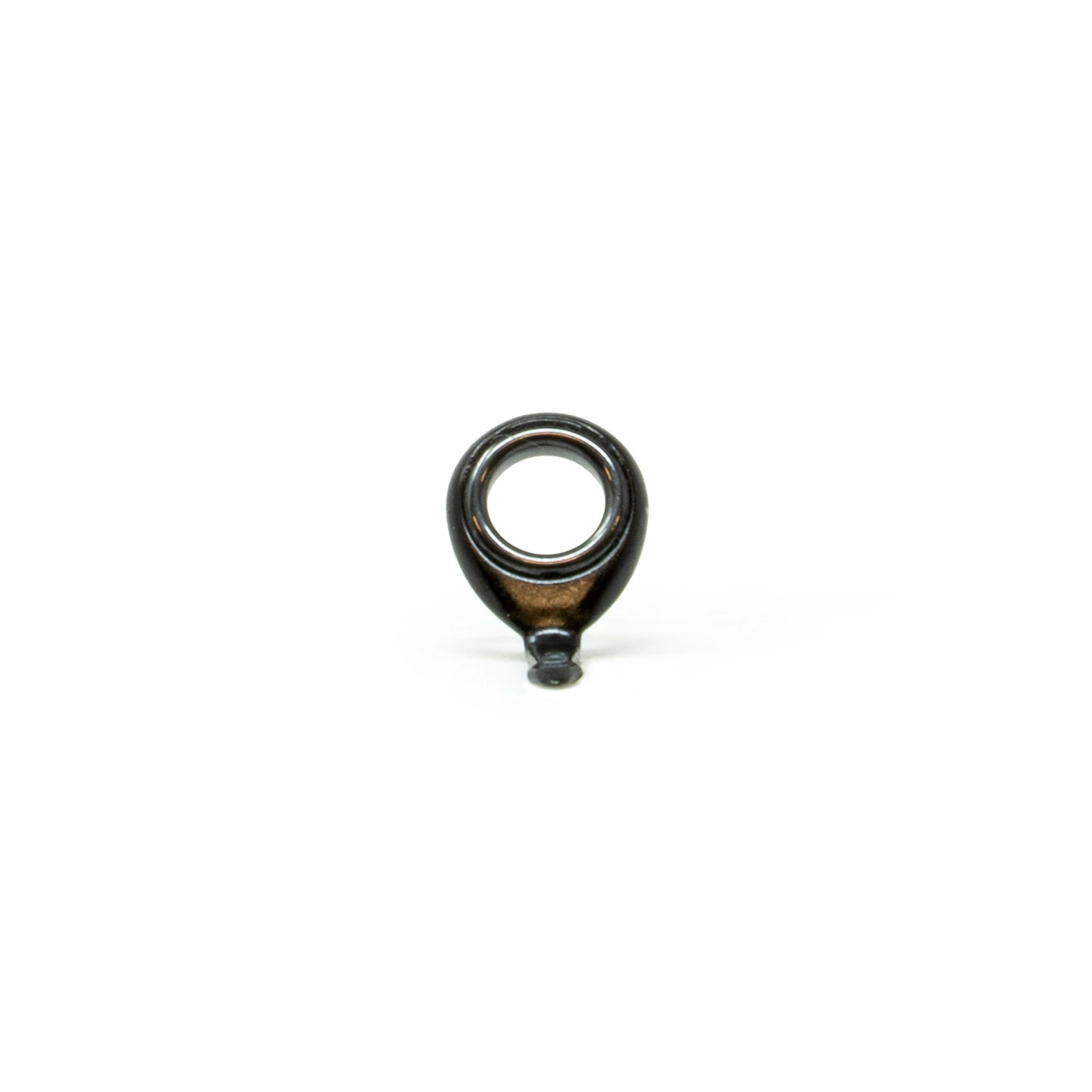

NBMW-6	Running Guide	Nanolite	4.25 mm	8.70 mm	9.50 mm	0.30 gm	4.45 mm	6.60 mm
NCMW-6	Running Guide	Nanolite	4.25 mm	8.70 mm	9.50 mm	0.30 gm	4.45 mm	6.60 mm
NOIMW-6	Running Guide	Nanolite	4.25 mm	8.70 mm	9.50 mm	0.20 gm	4.45 mm	6.60 mm
DBMW-6	Running Guide	Duralite	4.18 mm	8.38 mm	9.50 mm	0.30 gm	4.20 mm	6.60 mm
DCMW-6	Running Guide	Duralite	4.18 mm	8.38 mm	9.50 mm	0.30 gm	4.20 mm	6.60 mm
