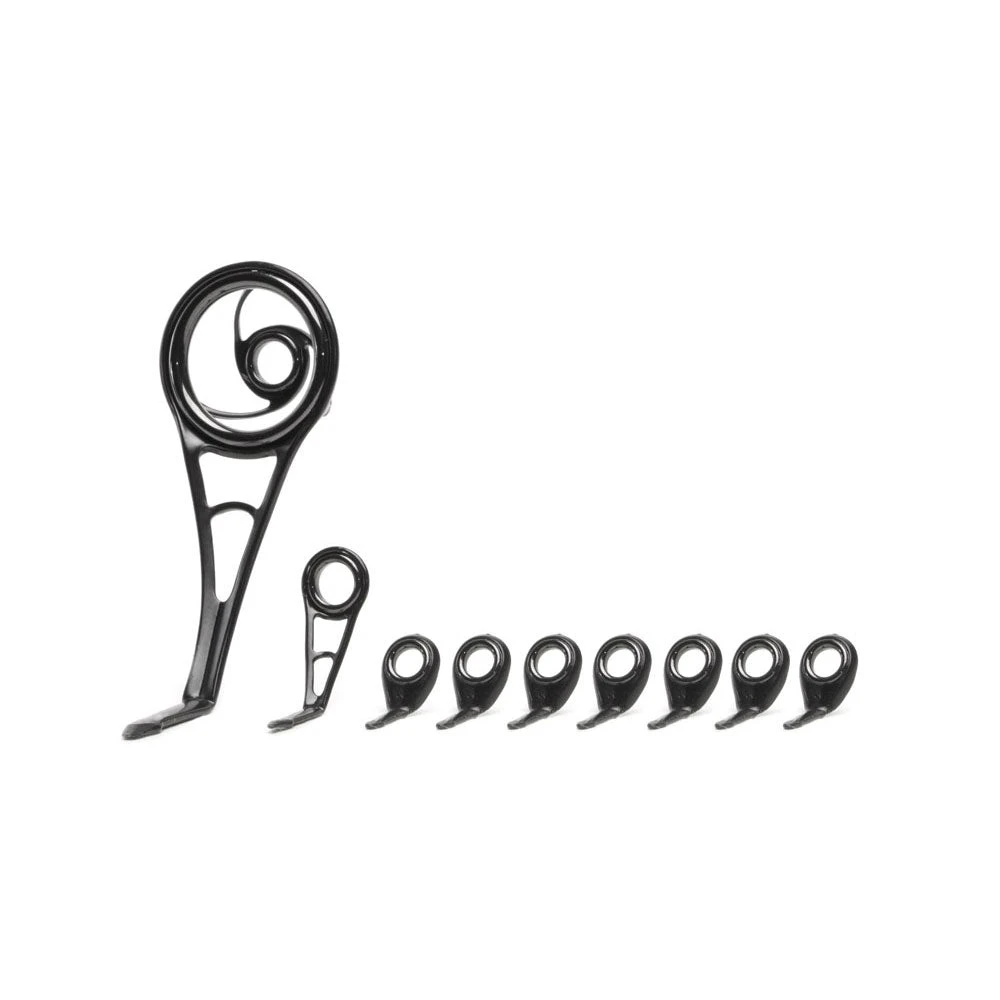

MicroWave Spinning Guides -Prorod Supplies Store MicroWave Spinning Guides Black Set 1

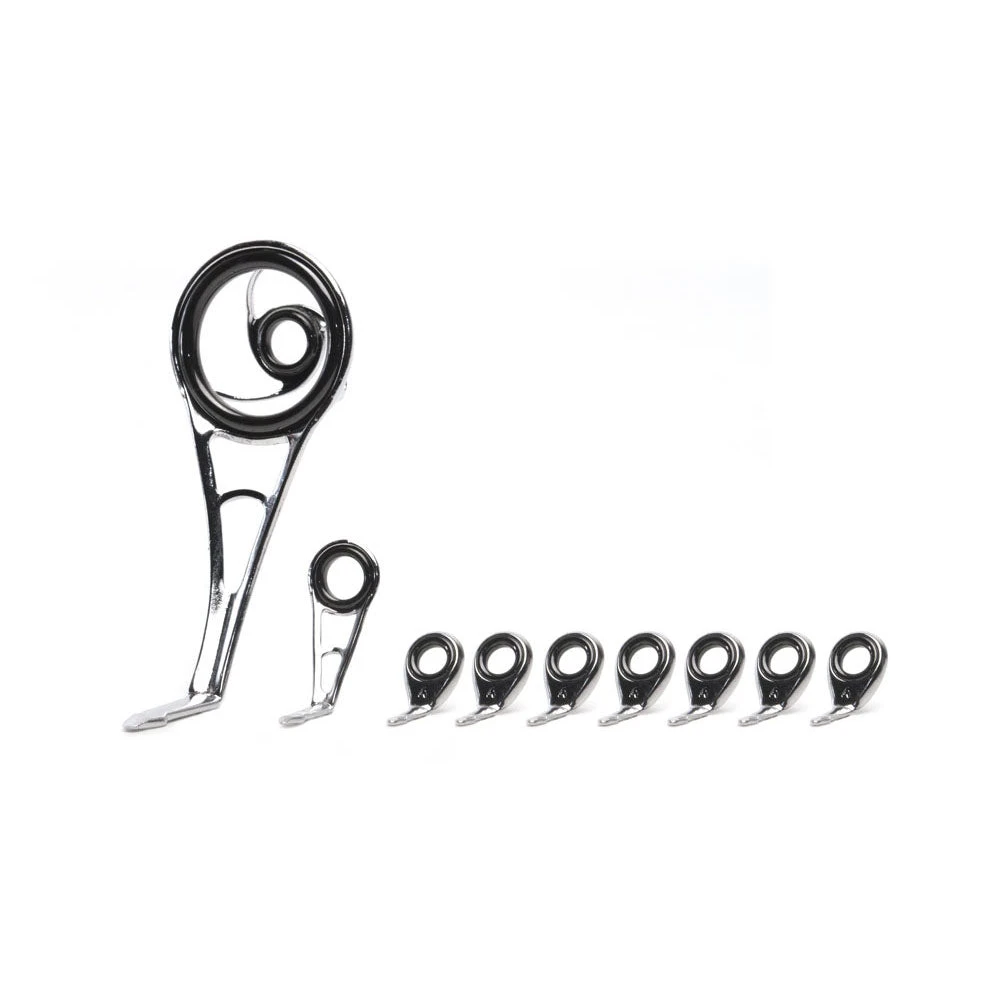

MicroWave Spinning Guides -Prorod Supplies Store MicroWave Spinning Guides Chrome Set 1

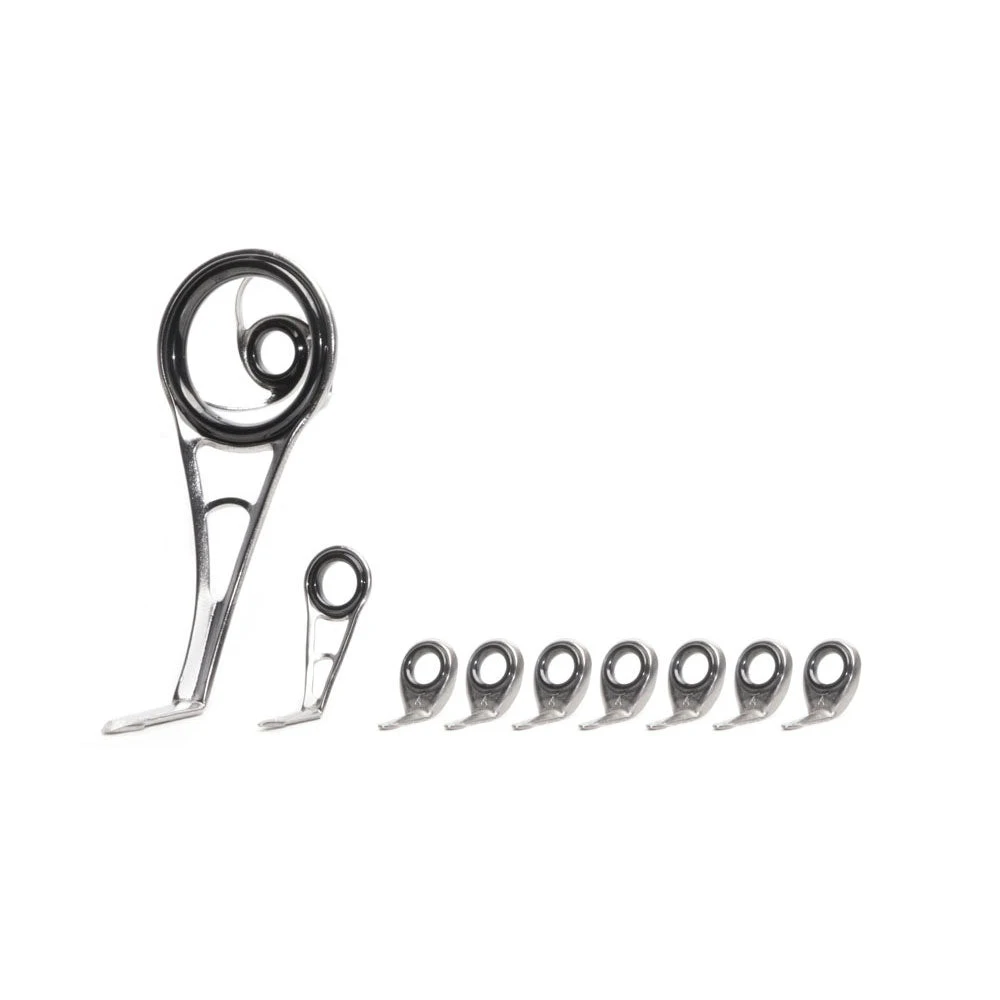

MicroWave Spinning Guides -Prorod Supplies Store MicroWave Spinning Guides Titanium Set 1

MicroWave Spinning Guides -Prorod Supplies Store MicroWave Spinning Guides Black 5mm Runner 1

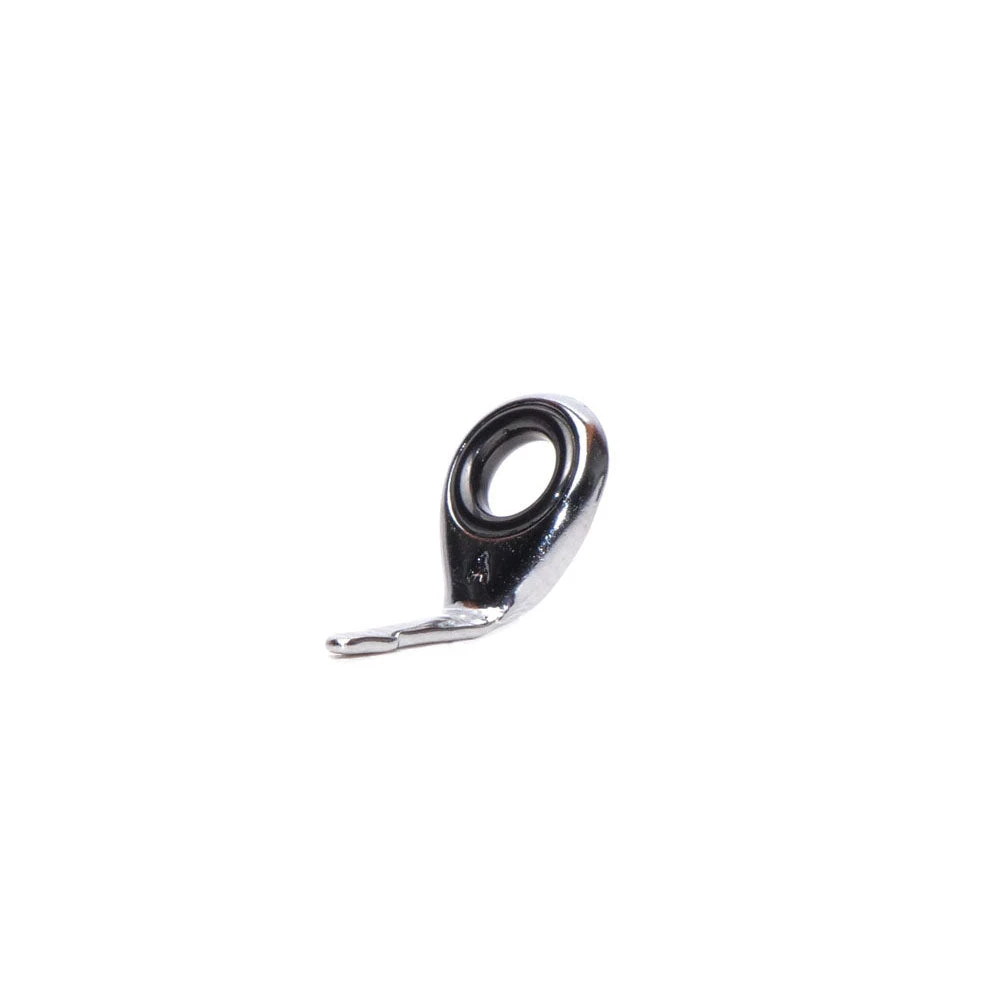

MicroWave Spinning Guides -Prorod Supplies Store MicroWave Spinning Guides Chrome 5mm Runner 1

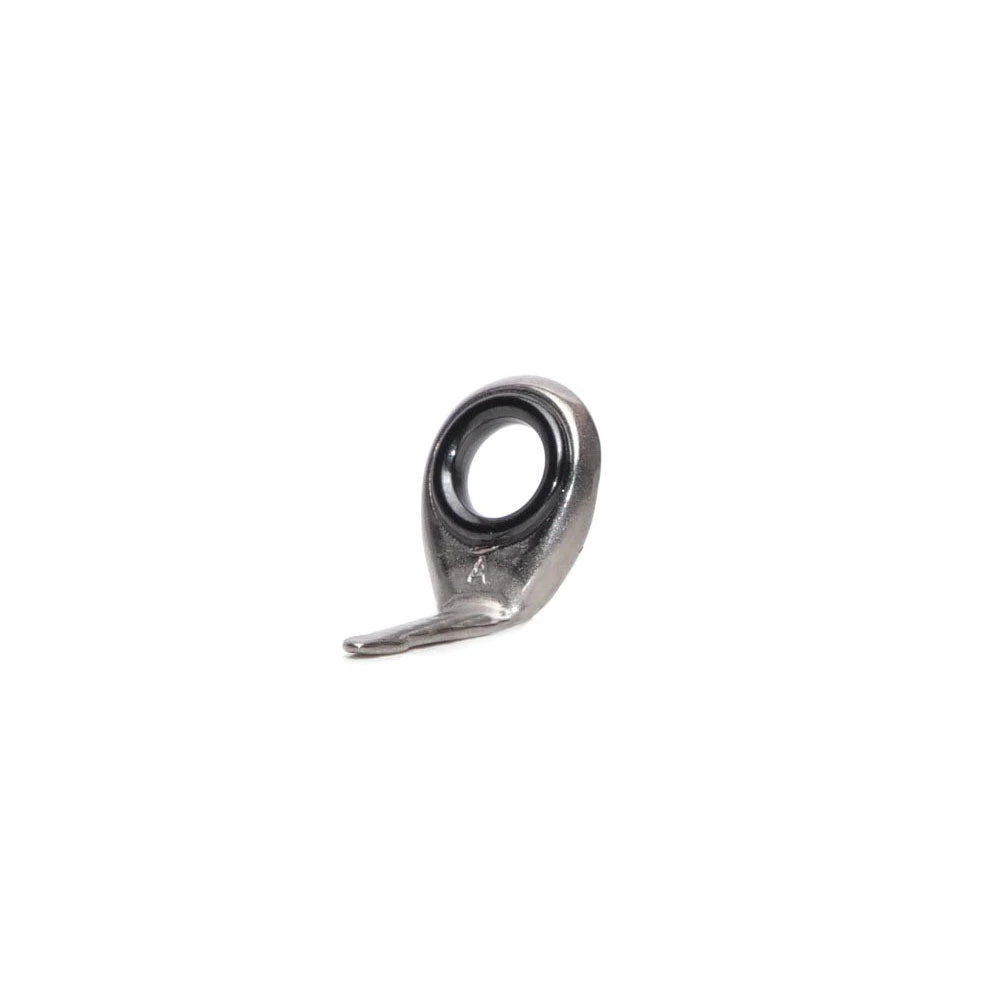

MicroWave Spinning Guides -Prorod Supplies Store MicroWave Spinning Guides Titanium 5mm Runner 1

MicroWave Spinning Guides

Name: Modern & unique designs of print MicroWave Spinning Guides - Prorod Supplies Store from United States of America
SKU: BXVKA 5078966829189
Price: 23.56 USD
Availability: InStock

Original price was: $33.66.Current price is: $23.56.

Ring Type

Option

Clear

SKU: BXVKA 5078966829189 Categories: Components, Rod Guides Tags: Color_Black, Guide Ring_Duralite, Guides_Running, Material_Titanium

Unbeatable Quality Guaranteed
The Quality Choice for Smart Shoppers
Buy with confidence, backed by quality.
There are quality problems, free return and exchange

Introducing the MicroWave Guide System by the American Tackle Company. Inventor Doug Hannon also known as “The Bass Professor” partnered with American Tackle to conceive, design and manufacture the perfect “line control” system for spinning rods.

The system addresses coiling-memory issues with monofilament but it’s ideal for braided lines and really something that has to be felt and seen to be believed. It provides noticeable advantages that standard guide trains cannot by combining science, practical application and custom rod building principles. Many long hours of theory, design & physical testing has resulted in possibly the most dynamic guide train developments to date.

MicroWave vs. Standard 'Cone of Flight' Guides

Only sold as complete sets

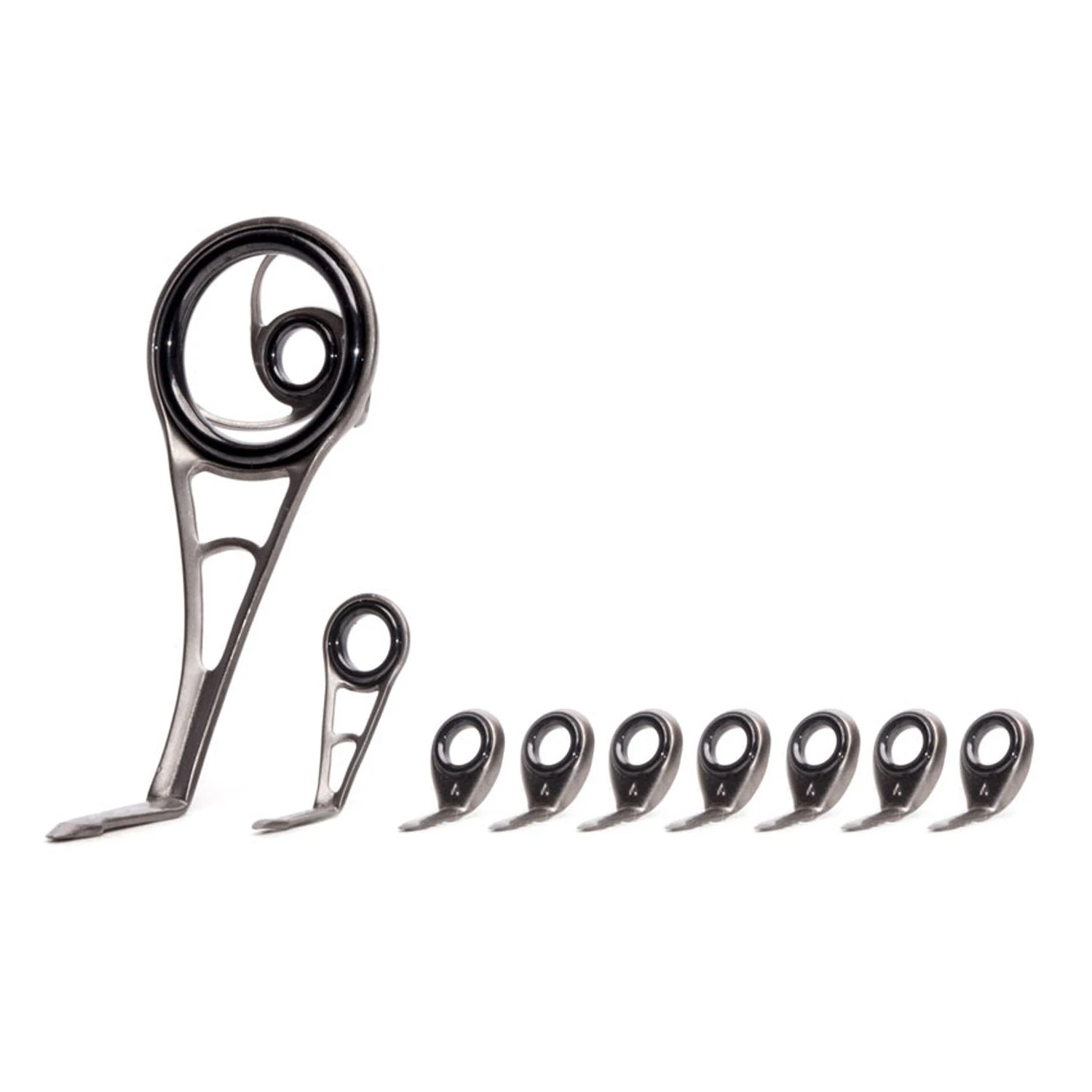

Set includes 1 stripper guide, 1 transition guide & 7 running guides (9 total based on a 7′ spinning rod, additional running guide available for longer rods). Also includes suggested layout measurements.

Microwave Advantages

Increased Casting Distance.
Achieved by capturing and directing energy into forward motion maintaining line speed.
Reduction in Fatigue.
Less force is required for casting using increased line speed because the blank will load and recover more naturally without inhibition from increased line vibration.
Increased Casting Accuracy.
Less force is required for casting using increased line speed because the blank will load and recover more naturally without inhibition from increased line vibration.
Increased Lure Range of Rod.
Using controlled energy, lighter & heavier lure weights can be used without rod blank materials compensating for lost efficiency.
Wind Knot Tangling Elimination.
Converts “pushing line energy” through a guide ring into “pulling line energy” preventing line from traveling beyond the larger stripper guide ring not allowing it to override the frame creating wrapping or knot formation. “And if that isn’t enough we utilize our brand new Snagless running guides out to the tip”. “Why use a stripping guide that’s tangle free when you can use a guide that all but eliminates tangles and then employs snagless running guides for added insurance”

Suggested MicroWave Guide Spacing

In order to ensure optimum performance using the MicroWave Line Control System, American Tackle has developed these guide spacing suggestions. While not required or absolute, these layouts have been tested to provide the advertised benefits.

Rod Length	1st Guide	2nd Guide	3rd Guide	4th Guide	5th Guide	6th Guide	7th Guide	8th Guide	9th Guide
Measurements made from tip toward handle from tip ring to each guide ring.
6’0″	2-1/4″ (5.715cm)	5-3/8″ (13.653cm)	9″ (22.86cm)	12-3/4″ (32.385cm)	17″ (43.18cm)	22-1/2″ (57.15cm)	29-1/4″ (74.295cm)	40″ (101.6cm)	–
6’6″	2-1/2″ (6.35cm)	6-1/4″ (15.875cm)	10-1/4″ (26.035cm)	14-1/2″ (36.83cm)	18-7/8″ (47.943cm)	24″ (60.96cm)	30″ (76.2cm)	37″ (93.98cm)	46″ (166.84cm)
7’0″	2-7/8″ (7.303cm)	6-3/8″ (16.193cm)	9-3/4″ (24.765cm)	14-1/8″ (35.878cm)	18-3/4″ (47.625cm)	24-5/8″ (62.548cm)	31-1/2″ (80.01cm)	40-3/4″ (103.505cm)	51-3/4″ (131.445cm)
7’6″	3-1/4″ (8.255cm)	7″ (17.78cm)	11-3/4″ (29.845cm)	16-7/8″ (42.863cm)	23″ (58.42cm)	29-1/4″ (74.295cm)	37-1/4″ (94.615cm)	46-7/8″ (119.063cm)	57-7/8″ (147.003cm)

NOTE: These layouts were developed for spinning rods with 8 1/2″ rear grips and uplocking spin seat. Running guide adjustments may be required if different handle lengths are used. Static deflection recommended for running guide placements. Stripping guide/transition guide & reel spool distances should remain constant.

MicroWave Guide Dimensions & Specifications

Model	Ring ID	Height A	Height B	Height C	Weight (Nanolite)	Weight (Duralite)	Foot Length
Stripper Guide	14.92mm / 4.46mm	28.75mm	43.75mm	46.70mm	3.1g	3.5g	14.89mm
Transition Guide	4.46mm	11.40mm	15.13mm	17.21mm	0.3g	0.5g	9.92mm
Running Guide	3.18mm	4.53mm	7.43mm	8.51mm	0.1g	0.3g	6.30mm

Ring Type	Duralite, Nanolite

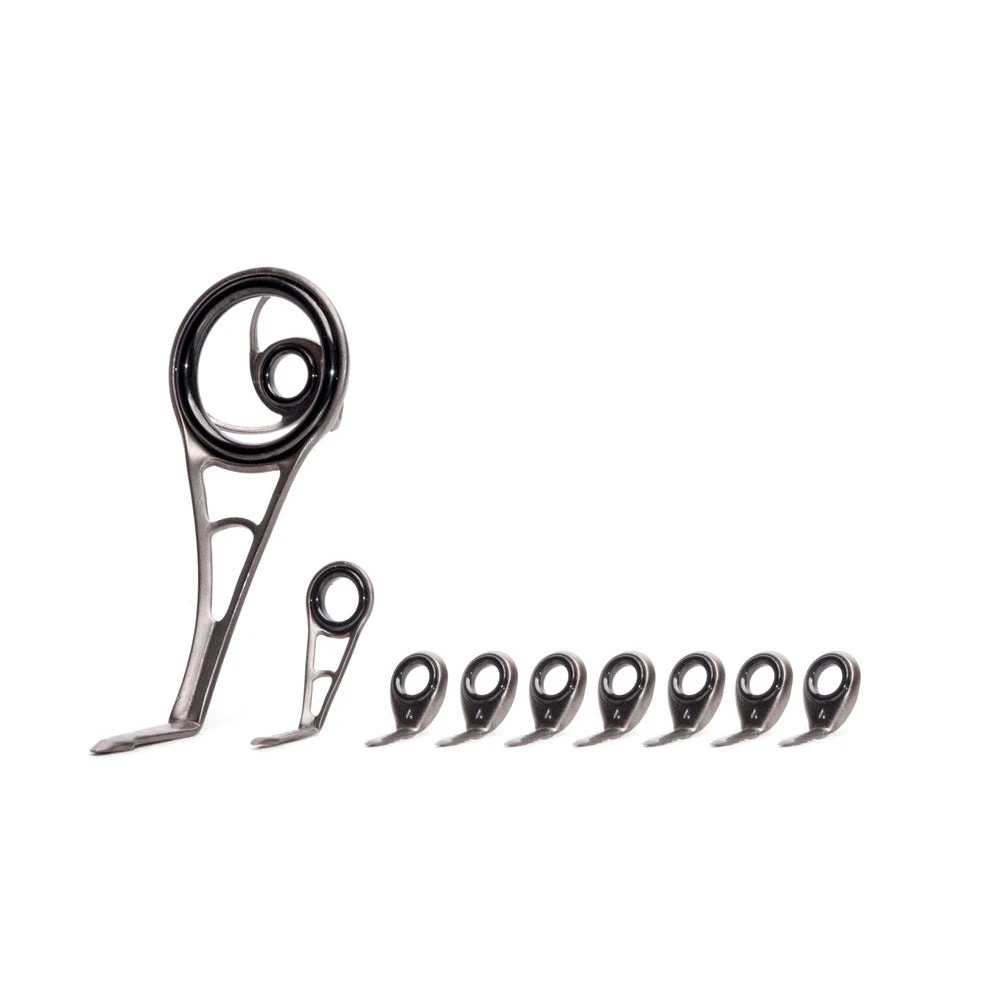

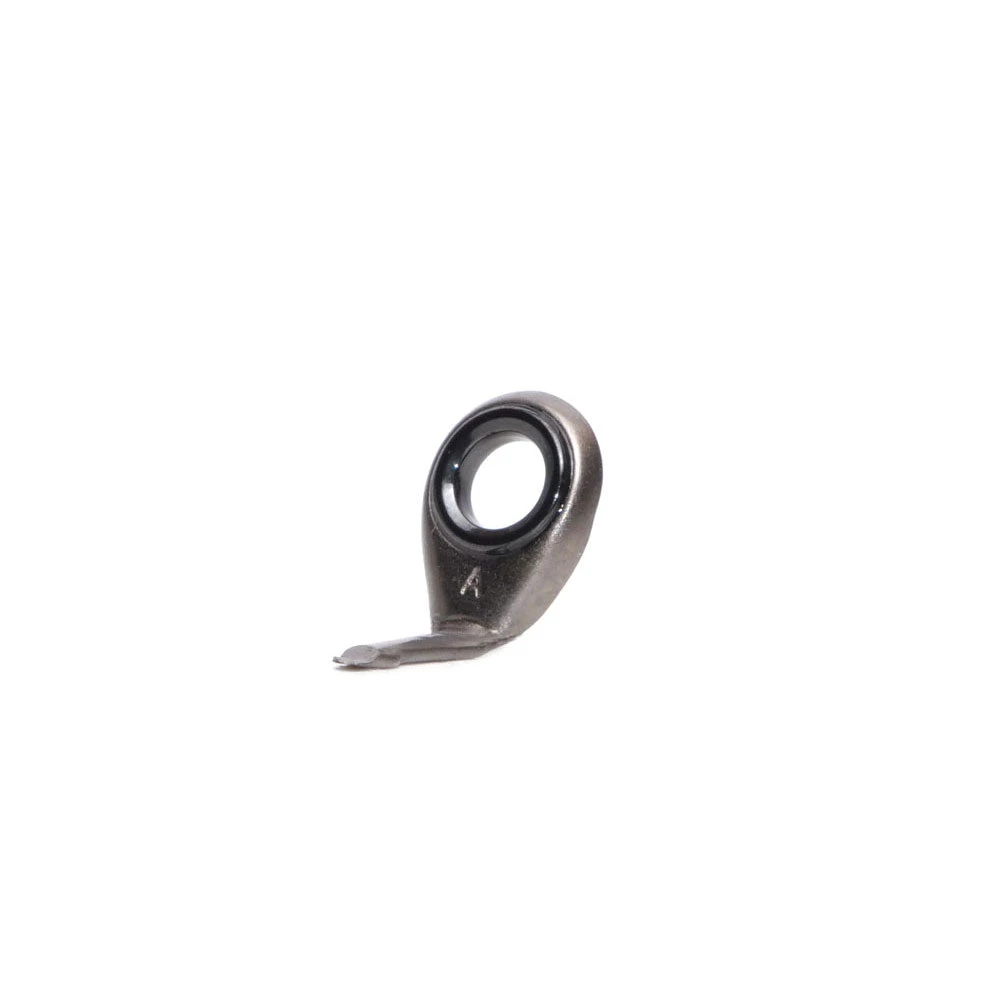

Option	Black Set, Chrome Set, Titanium Set, Black 5mm Runner, Chrome 5mm Runner, Titanium 5mm Runner, Gunsmoke Set, Gunsmoke 5mm Runner
